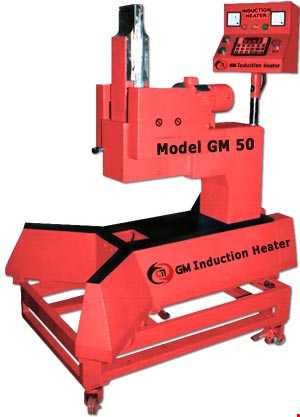

GM Induction Heater GM50

GM Induction Heaters are designed to heat the Bearings and other shrink-fit components prior to mounting, using latest technology intelligent microcontroller based electronic controls. The life of Bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component. GM Induction Heaters are available in different models for mounting, range of bearings having bore size from 10 mm and above. Fast, safe and economical heating of bearings is best features of GM Induction heaters. GM Induction Heater - GM 50 has very heavy capacity to heat the components. It has intelligent microcontroller based electronic control. It weights about 500kg. It can heat a bearing of 1000 kg to temperature as per requirement in customized time. GM Induction Heater - GM 50 is provided with manual or automated Roll-sliding Arrangement for the standard yoke. The Roll-Sliding Arrangement is so designed that the yoke gets lifted mechanically or automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.
Product Data GM 50
1) Power 50 / 80 KVA
2) Voltage 3Ø X 415V ± 10%
3) Current (Max) 120 / 190A
4) Power Control 25% 50% 75% & 100%
5) Temperature Control (Range) 0-400oC
    Maximum Temperature 400oC
    Accuracy Temperature ± 3oC
6) Time-Control 0-99 Minutes
7) Residual Magnestium <1A / cm
8) Overall dimensions (wxdxh) (mm) 1250 X 700 X 1150
9) Space between supports (wxh) (mm) 450 X 550
10) Weight (Main Unit) 470 Kg.
